제품분류 토양CO2플럭스

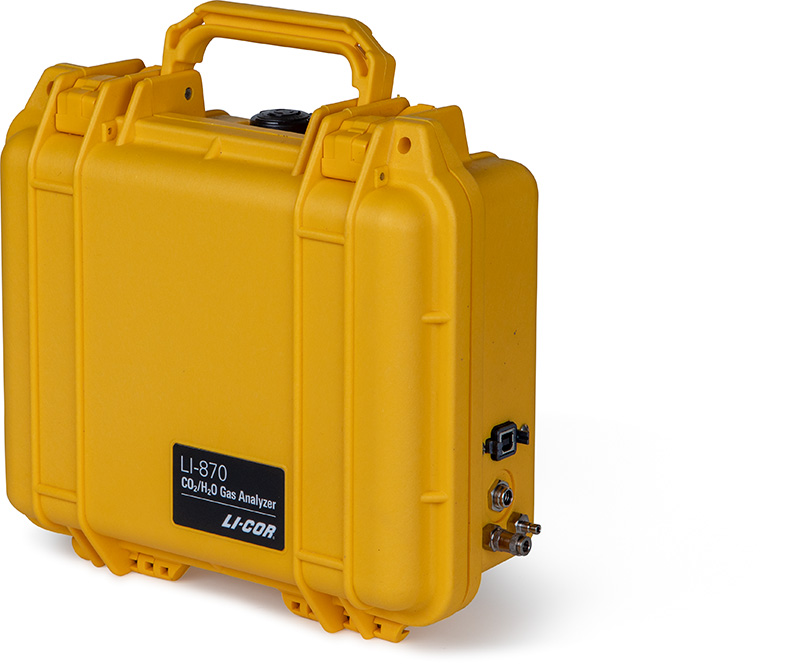

모델 : LI-870
특징

-빠른 CO2 Flux 측정을 위한 휴대용 CO2/H2O 분석기

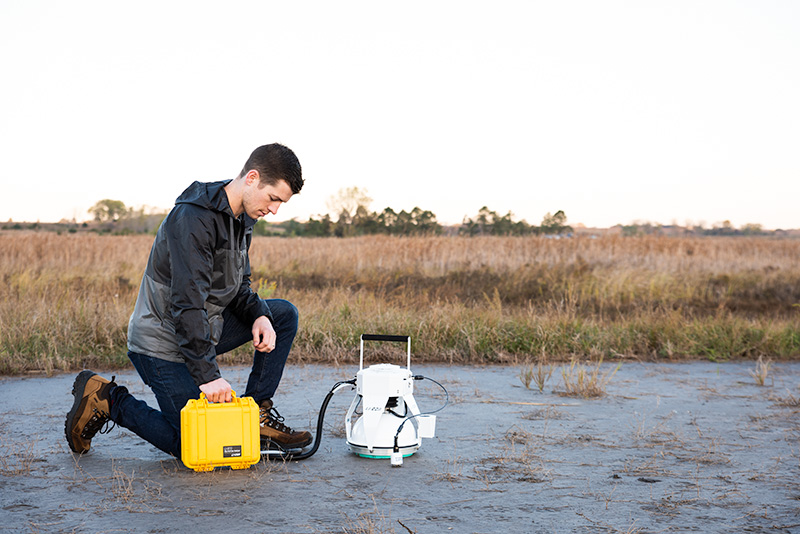

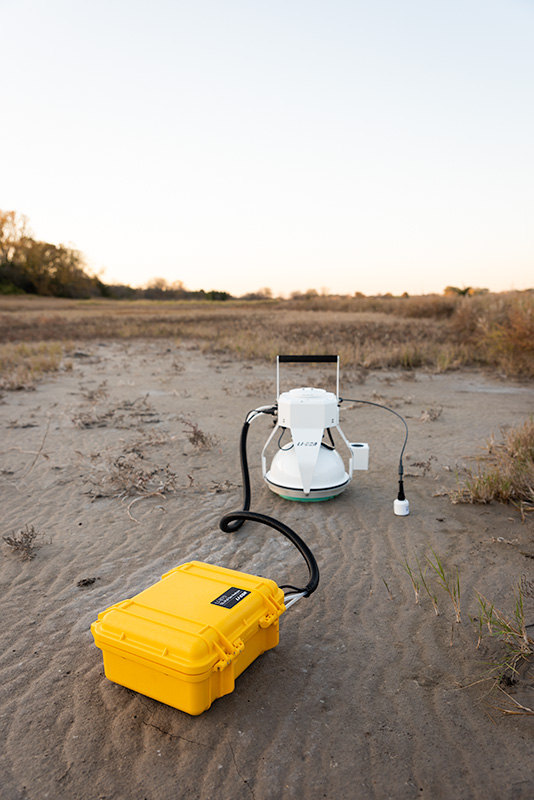

-매우 가벼워 휴대하기 편리하여, 8200-01S(Smart Chamber)와 결합하여 토양 CO2 Flux 측정 가능
-저전력 소비로 20시간 사용 가능
상세규격
-Case dimensions: 28.4 cm L × 27.9 cm W × 12.4 cm H
-Weight: 2.31 kg
-Measurement rate: 1 measurement per second (1 Hz)
-Operating temperature range: -20 to 45 °C, without solar loading
-Relative humidity range: 0 to 95% RH, non-condensing
-Measurement principle: Non-dispersive infrared (NDIR)
-Operating pressure range: 50 to 110 kPa
-Flow rate (nominal): 0.75 liters min-1
-Power Requirements:
Input voltage: 10-17 VDC, 2 A max
Power source: 8200-01S Smart Chamber

-CO2 Measurements
Measurement range: 0 to 20,000 ppm
Accuracy: Within 1.5% of reading

-H2O Measurements
Measurement range: 0 to 60 mmol mol-1
Accuracy: Better than 1.5% of reading



CO2/H2O 분석기
CO2/H2O Analyzer
